חומרה
CPU Intel Atom C3538 quad-core 2.1GHz
Hardware encryption engine Yes (AES-NI)
Memory 4 GB DDR4 Non-ECC SO-DIMM1
(expandable up to 32 GB with 16 GB ECC SO-DIMM x 2)
Compatible drive type • 12 x 3.5" or 2.5" SATA SSD/HDD (drives not included)
• 2 x M.2 2280/2260/2242 NVMe/SATA SSD via M2D18 adapter card4
(drives not included)
Hot swappable drive Yes

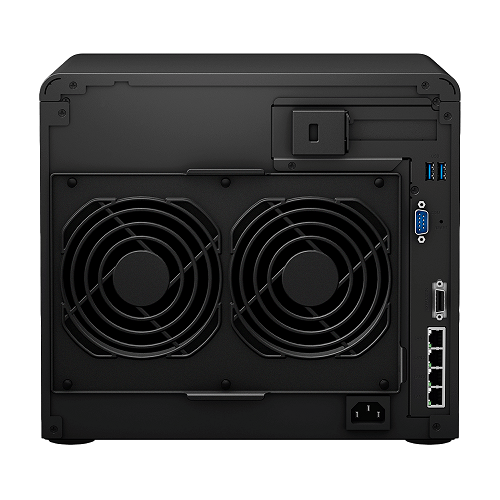

External port • 2 x USB 3.0 port
• 1 x expansion port
Size (HxWxD) 270 x 300 x 340 mm
Weight 9.5 kg
LAN 4 x Gigabit (RJ-45)
Wake on LAN/WAN Yes
PCIe 3.0 slot
• 1 x 4-lane x8 slot
• 10GbE network interface cards support
• M.2 NVMe/SATA SSD adapter card support4
Scheduled power on/off Yes
System fan 2 (120 x 120 x 25 mm)
AC input power voltage 100V to 240V AC
Power frequency 50/60Hz, single phase
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage temperature -20°C to 60°C (-5°F to 140°F)
Relative humidity 5% to 95% RH
Maximum operating altitude 2,000 m (6,500 ft)
כללי
Networking protocol SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN ™ , L2TP)
File system • Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT6
Supported RAID type Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Storage management
• Maximum single volume size: 108TB
• Maximum system snapshots: 65,5367
• Maximum internal volume: 512
SSD cache • Read-write cache support
• M.2 SSD support (M.2 NVMe/SATA SSD)4
File sharing capability
• Maximum local user account: 2,048
• Maximum local group: 256
• Maximum shared folder: 512
• Maximum concurrent SMB/NFS/AFP/FTP connection: 1,000
Privilege Windows Access Control List (ACL), application privilege
Directory service Windows® AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration
Virtualization VMware vSphere® 6.5, Microsoft Hyper-V® , Citrix®, OpenStack®
Security Firewall, Encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, Login auto block, Let's Encrypt support, HTTPS
(Customizable cipher suite)
Supported client Windows 7 onwards, Mac OS X® 10.11 onwards
Supported browser Chrome®, Firefox®, Internet Explorer® 10 onwards, Safari® 10 onwards; Safari (iOS 10 onwards), Chrome (Android™ 6.0 onwards)
שרת קבצים וסנכרון
Drive
Provide universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android and iOS. The built-in
universal portal allows you to access data anytime and anywhere.
• Maximum number of hosted files: 550
• Maximum number of concurrent connections for PC clients: 1,000,000
File Station Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users/groups, creating
sharing links, transfer logs
FTP Server Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the
network with TFTP and PXE support, transfer logs
Presto File Server8 High-speed data transfer over WAN with exclusive SITA technology between Synology NAS and desktop
Cloud Sync
One or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Amazon Drive, Amazon S3-compatible
storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack
Swift-compatible storage, Tencent COS, WebDAV servers, Yandex Disk
Universal Search Offer global search into applications and files
אחסון וירטואליזציה של SCSI
iSCSI Manager
• Maximum iSCSI target: 128
• Maximum iSCSI LUN: 256
• iSCSI LUN clone/snapshot support
Virtual Machine Manager Deploy and run various virtual machines on Synology NAS, including Windows, Linux, or Virtual DSM
פתרון הגנת נתונים וגיבוי
Hyper Backup Support local backup, network backup, and backup data to public clouds
Backup tools DSM configuration backup, macOS Time Machine support, Cloud Station Backup
Shared folder sync - maximum task number: 16
Snapshot Replication • Maximum of shared folder snapshots: 1,024
• Maximum of Replication: 32
High Availability Manager Reduce service downtime by setting up two identical NAS into one high-availability cluster
Active Backup for G Suite Support G Suite My Drive and Team Drive backup and restoration
Active Backup for Office 365 Support Office 365 OneDrive for Business, mail, contacts, and calendar backup and restoration
Active Backup for Business All-in-one backup solution designed for heterogeneous business IT environment, enabling IT admins to remotely manage and monitor
protection over PC, servers and VM on one centralized console
תכולת הערכה
Package content

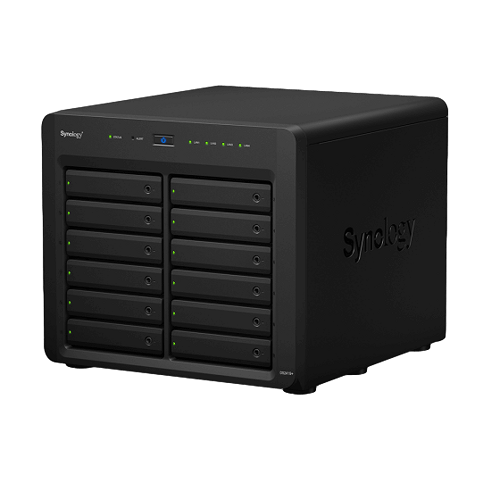

• DS2419+ main unit x 1
• Quick Installation Guide x 1
• Accessory pack x 1
• AC power cord x 1
• RJ-45 LAN cable x 2
