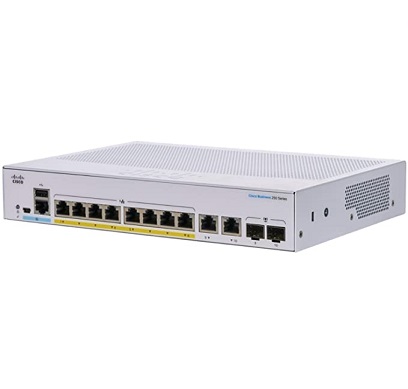

Device Type Switch - 8 ports - L3 - smart
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE Budget 45 W
Performance Forwarding performance (64-byte packet size): 11.9 Mpps ¦ Switching capacity: 16 Gbps
Capacity RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 255 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size 8K entries
Jumbo Frame Support 2KB
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status, PoE, link/activity/speed
Expansion / Connectivity
Interfaces 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 1 x USB Type A
Power
Power Device External power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 61.4 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 1,659,542 hours
Compliant Standards UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localisation Kuwait, Qatar, Saudi Arabia, Hong Kong, Malaysia, Singapore, United Kingdom
Dimensions & Weight
Width 16 cm
Depth 12.8 cm
Height 3 cm
Weight 560 g
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -25 °C
Max Storage Temperature 70 °C
Humidity Range Storage 10 - 90% (non-condensing)
|
