מפרט
|

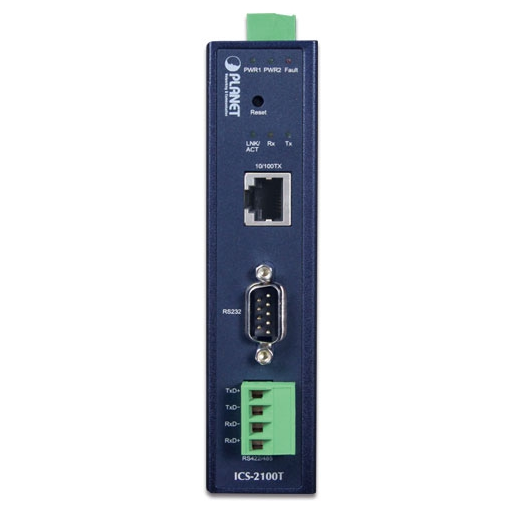

Serial Ports 1 x DB9 male for RS232
1 x 4-Pin Terminal block for RS422 / RS485
Serial Standards RS232 / 4-wire RS422 or RS485 / 2-wire RS485
Baud Rate (Data Rate) 50bps to 921Kbps
Data Bits 5, 6, 7, 8
Parity Type 1, 1.5, 2
Stop Bit Odd, Even, None, Space, Mark
Flow Control RTS/CTS and DTR/DSR (RS232 only)
XON/XOFF
Signals RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND
|
