מפרט
|
PRODUCT NAME

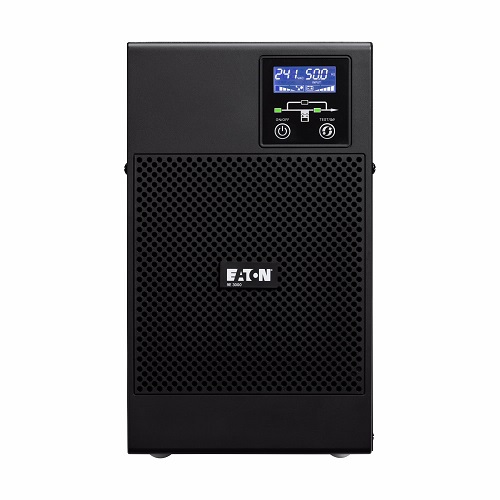

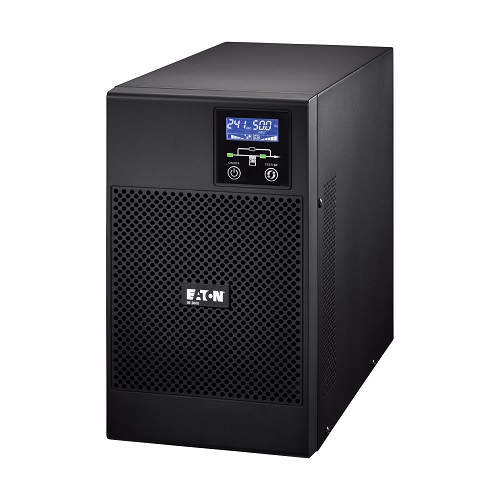

Eaton 9E UPS
CATALOG NUMBER
9E3000I
UPC
786689166588
PRODUCT LENGTH/DEPTH
19 cm
PRODUCT HEIGHT
33 cm
PRODUCT WIDTH
39.9 cm
PRODUCT WEIGHT
24.2 kg
COMPLIANCES
CE Marked
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
|
|
סוללה
|
BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
View runtime graph
BATTERY REPLACEMENT
Replacable batteries
BATTERY QUANTITY
6
BATTERY MANAGEMENT
Automatic battery test
Deep discharge protection
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
Yes
|
|
תפוקה חשמלית
|
RECEPTACLE
(6) C13, (1) C19
VOLTAGE
230V
WATTAGE
2400 W
OUTPUT POWER FACTOR
0.8
OUTPUT VOLTAGE RANGE
220/230/240 V +/- 2%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
3
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
VA RATING
3000 VA
|
|
קלט חשמלי
|
INPUT CONNECTION
C20
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT VOLTAGE RANGE
176-300 V (100 V-300 V with derating)
INPUT FREQUENCY RANGE
40-70 Hz
|
|
תקשורת
|
INCLUDES NETWORK CARD
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Communication slot
ETHERNET INTERFACE
No

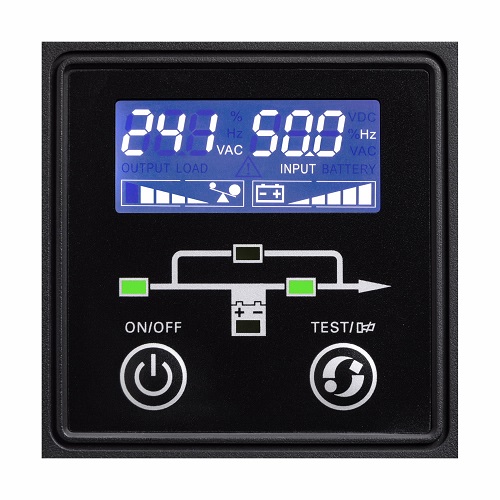

USER INTERFACE
LCD Display
POTENTIAL FREE SWITCH CONTACT
No

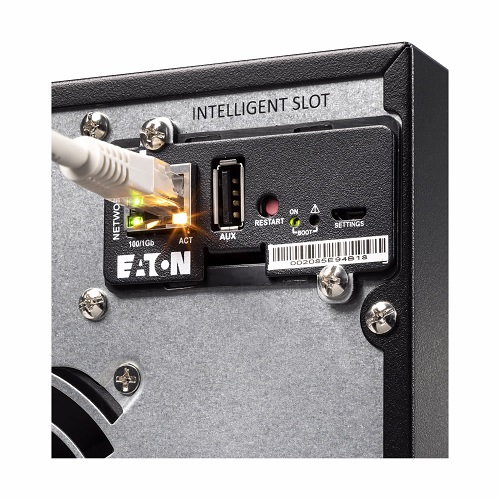

EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other
|
|
סביבת עבודה
|
ALTITUDE
3000 m
NOISE LEVEL
<37 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-95% non-condensing
|
|
מפרטים נוספים
|
CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
UPS
USB cable
Serial cable
Quickstart guide
Safety instructions
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
91
RACK MOUNTING KIT
No
PHASE (INPUT)
1
HOT SWAP POWER
No
|
