מעבד
|
1.AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
|
|
צ'יפסט
|
AMD X570
|
|
זכרון
|
3rd Generation AMD Ryzen™ processors:
Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
|
|
אודיו
|
Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
|
רשת
|
Intel® GbE LAN chip (10/100/1000 Mbit)
|
|
גרפיקה
|
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
|
|
חריצי הרחבה
|
Integrated in the CPU (PCIEX16):
3rd Generation AMD Ryzen™ processors:
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2nd Generation AMD Ryzen™ processors:
1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset:
1x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
|
|
התקני איחסון
|
Integrated in the CPU (M2A_SOCKET):
3rd Generation AMD Ryzen™ processors:
1x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support)
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support)
* For 3rd Generation AMD Ryzen™ processors only.
4x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
|
|
תמיכה בכרטיסי מסך
|
1.Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
|
|
USB
|
Integrated in the CPU:
4x USB 3.2 Gen 1 ports on the back panel
Integrated in the Chipset:
1x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2x USB 3.2 Gen 1 ports available through the internal USB header
2x USB 2.0/1.1 ports available through the internal USB header
|
|

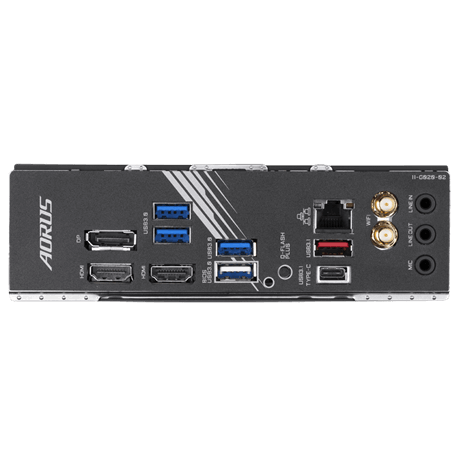

חיבורים אחורים
|
1x DisplayPort
2x HDMI ports
1x USB 3.2 Gen 2 Type-A port (red)
4x USB 3.2 Gen 1 ports
1x USB Type-C™ port, with USB 3.2 Gen 2 support
1x Q-Flash Plus button
1x RJ-45 port
2x SMA antenna connectors (2T2R)
3x audio jacks
|
|
I/O Controller
|
iTE® I/O Controller Chip
|
|
ביוס
|
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
תוכנות נלוות
|
1.Norton® Internet Security (OEM version)
2.cFosSpeed
3.XSplit Gamecaster + Broadcaster (12 months license)
|
|
מערכת הפעלה
|
Support for Windows 10 64-bit
|
|
מידות
|
Mini-ITX Form Factor; 17.0cm x 17.0cm
|
|
תקשורת אלחוטית
|
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
|
