מעבד
|
Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
|
|
שבב
|
Intel® H310 Express Chipset
|
|
זכרון
|
2x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)
|
|
גרפיקת לוח
|
Integrated Graphics Processor-Intel® HD Graphics support:
1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
|
|
אודיו
|
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
|
LAN
|
Realtek® GbE LAN chip (10/100/1000 Mbit)
|
|
הרחבה
|
1x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
|
|
ממשק אחסון
|
Chipset:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
|
|
USB
|
Chipset:
4x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
|
|
חיבורים
|
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x system fan header
1x M.2 Socket 3 connector
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB 3.1 Gen 1 header
1x USB 2.0/1.1 header
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x Clear CMOS jumper
|
|

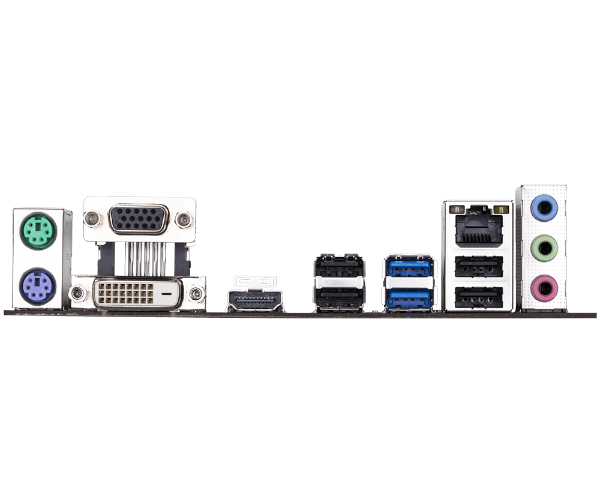

חיבורים אחורים
|
1x PS/2 keyboard port
1x PS/2 mouse port
1x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
|
|
I/O Controller
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
|
BIOS
|
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
תכונות נוספות
|
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
|
|
תוכנה
|
Norton® Internet Security (OEM version)
|
|
תמיכת מערכות הפעלה
|
Support for Windows 10 64-bit
|
|
מידות
|
Micro ATX Form Factor; 22.6cm x 18.5cm
|
|
