מעבד
|
Support for Intel® Core™ X series processors in the LGA2066 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
|
|
Chipset
|
Intel® X299 Express Chipset
|
|
זכרון
|
8x DDR4 DIMM sockets supporting up to 128 GB of system memory.
* Support for up to 512 GB of system memory when using Registered DIMMs.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
4x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core).
4channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).
Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
Support for non-ECC Un-buffered DIMM memory modules
Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
|
|
אודיו
|
Realtek® ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
|
|
רשת
|
Intel® GbE LAN chip (10/100/1000 Mbit)
2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1x PCI Express x16 slot, running at x8 (PCIEX8)
2x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
|
|
חריצי הרחבה
|
2x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1x PCI Express x16 slot, running at x8 (PCIEX8)
2x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
X299 PCIE OPTIMAL PERFORMANCE TOOL
See your optimal configuration by checking all boxes below
When using a 44 lane CPU (10-core or above):
1-Way 2-Way 3-Way
PCIEX16_1 ∨(x16) ∨(x16) ∨(x16)
PCIEX16_2 ╳ ∨(x16) ∨(x16)
PCIEX8 ╳ ╳ ∨(x8)
∨: Installed, ╳: Not Installed.
When using a 28 lane CPU (6-core or above):
1-Way 2-Way
PCIEX16_1 ∨(x16) ∨(x16)
PCIEX16_2 ╳ ∨(x8)
PCIEX8 ╳ ╳
∨: Installed, ╳: Not Installed.
When using a 16 lane CPU (4-core):
1-Way 2-Way*
PCIEX16_1 ∨(x8) ∨(x8)
PCIEX16_2 ╳ ∨(x4)
PCIEX8 ╳ ╳
∨: Installed, ╳: Not Installed.
* Supports the CrossFire technology only.
|
|
ממשק אחסון
|
Chipset:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Intel® VROC Ready
|
|
Multi-Graphics Technology
|
Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies
|
|
USB
|
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
2x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
10x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
4x USB 2.0/1.1 ports available through the internal USB headers
|
|
חיבורים
|
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
2x system fan headers
1x 3 Amp fan/water cooling pump header
1x digital LED strip header
1x digital LED strip power select jumper
2x RGB (RGBW) LED strip extension cable headers
2x M.2 Socket 3 connectors
8x SATA 6Gb/s connectors
1x Intel® VROC Upgrade Key header
1x front panel header
1x front panel audio header
1x S/PDIF Out header
2x USB 3.1 Gen 1 headers
2x USB 2.0/1.1 headers
1x Thunderbolt™ add-in card connector
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x temperature sensor header
1x Clear CMOS jumper
|
|

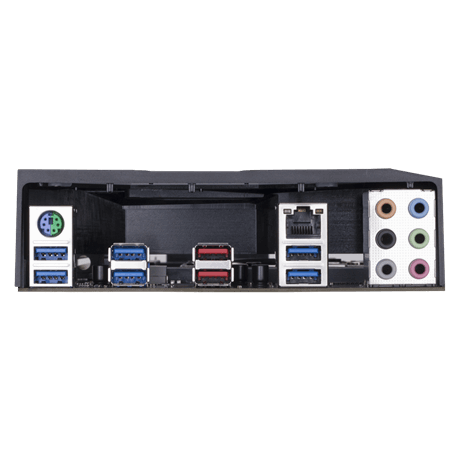

חיבורים אחורים
|
1x PS/2 keyboard/mouse port
2x USB 3.1 Gen 2 Type-A ports (red)
6x USB 3.1 Gen 1 ports
1x RJ-45 port
6x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
|
|
H/W Monitoring
|
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
|
|
BIOS
|
2x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
תכונות נוספות
|
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
|
|
Bundle Software
|
Norton® Internet Security (OEM version)
cFosSpeed
|
|
מערכות הפעלה
|
Support for Windows 10 64-bit
|
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
|
